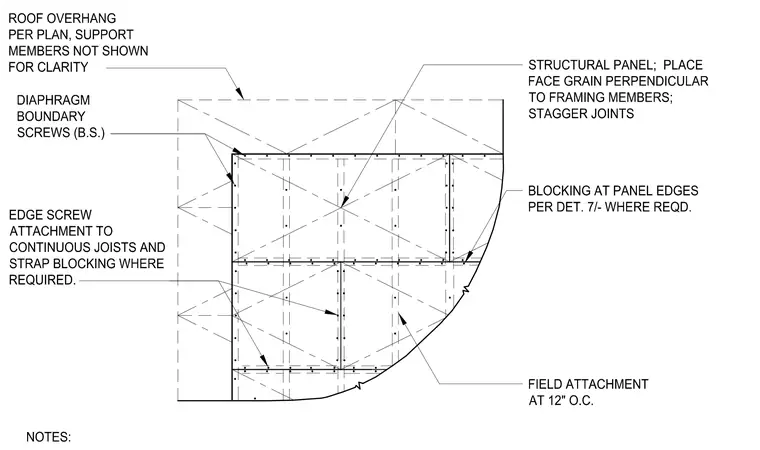

Structural panels are installed with the face grain oriented perpendicular to the supporting framing members, with all panel joints staggered. Blocking is provided at panel edges where required per detail 7. Edge screw attachment is specified for continuous joists and strap blocking, while field attachment is spaced at twelve inches on center. The diaphragm boundary is secured with screws as specified. Roof overhang support members are omitted for clarity.
