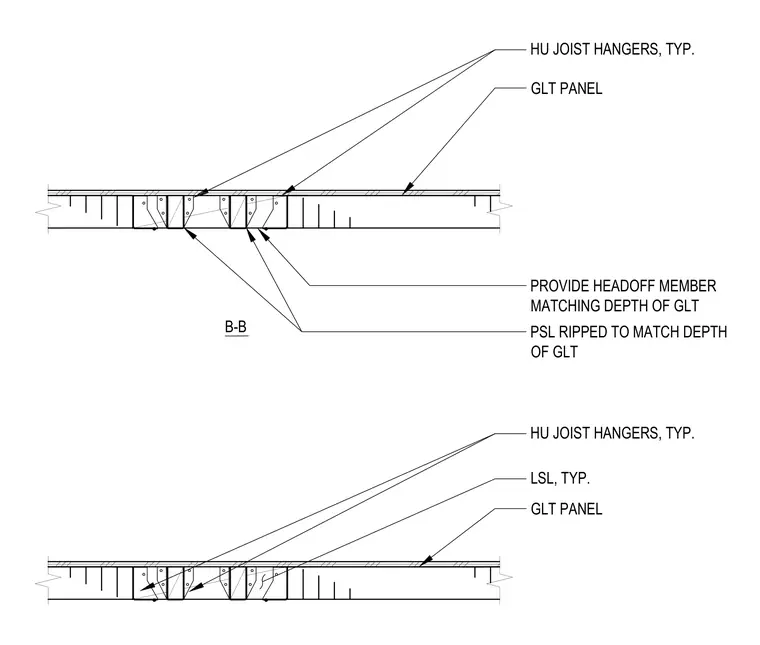

Glued laminated timber panels bear alongside parallel strand lumber ripped to match the depth of the glued laminated timber. Laminated strand lumber components and headoff members match the depth of the glued laminated timber. HU joist hangers tie the assembly together typical throughout the connection.
HU JOIST HANGERS, TYP. GLT PANEL PROVIDE HEADOFF MEMBER MATCHING DEPTH OF GLT HU JOIST HANGERS, TYP. LSL, TYP. B-B GLT PANEL PSL RIPPED TO MATCH DEPTH OF GLT
