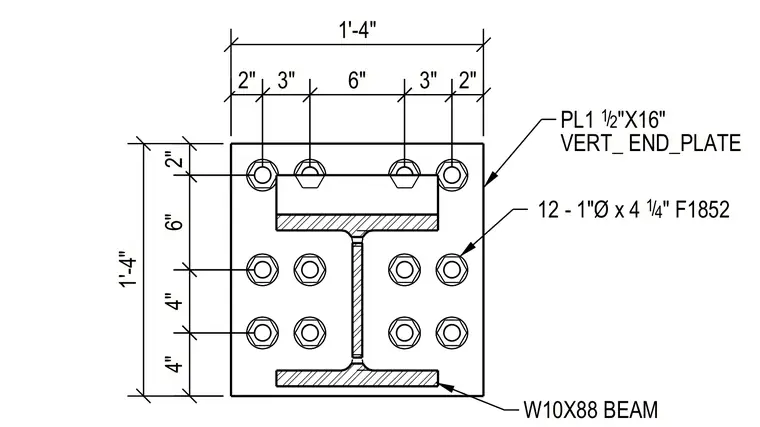

A W10x88 steel beam connects via a vertical end plate measuring 1 foot 4 inches square by 1 and one-half inches thick. Twelve 1-inch diameter by 4 and one-quarter inch long ASTM F1852 bolts fasten the end plate in a symmetric pattern around the beam profile.
PL1 1 2 / "X16" VERT_ END_PLATE 12 - 1"Ø x 4 1 4 / " F1852 W10X88 BEAM 4" 2" 2" 2" 1'-4" 6" 1'-4" 3" 3" 4" 6"
