Typical Roof Drain Support (Plan View)

Materials

Concrete Steel Timber / Wood Brick Metal (misc.)

Elements

Walls Curtain Walls Facades / Cladding Roofs Decks Arches Bracing Drainage Connections / Plates

Connections

Bracing Connection

About this detail

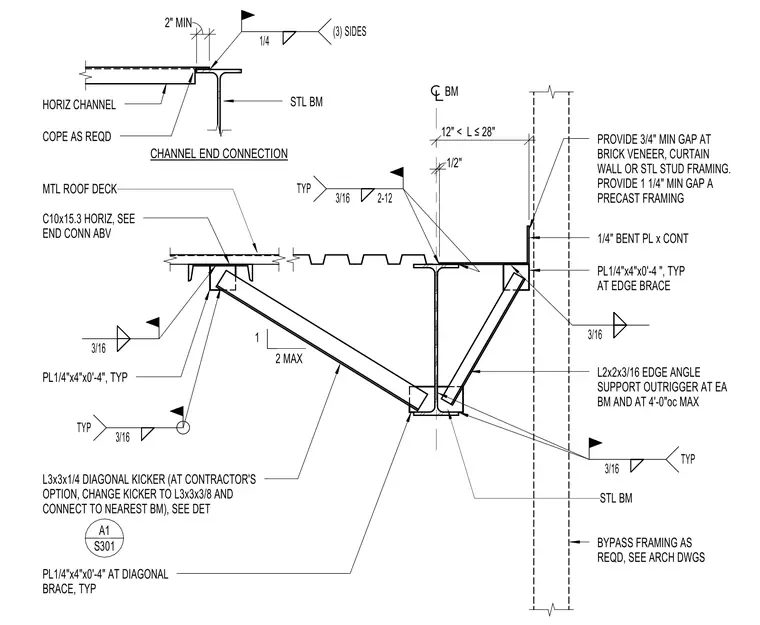

A C10x15.3 horizontal channel and metal roof deck frame the roof edge, supported by steel beams with edge angle outriggers spaced at four feet on center maximum. An L3x3x1/4 diagonal kicker connects to the framing, with an option to substitute an L3x3x3/8 member connected to the nearest beam. Connection plates measuring 1/4 inch by 4 inches by 4 inches typical are welded with 3/16 inch fillets at the edge brace and diagonal brace. Minimum clearances include 3/4 inch at brick veneer, curtain wall, or steel stud framing, and 1 1/4 inch at precast framing with bypass framing as required.
