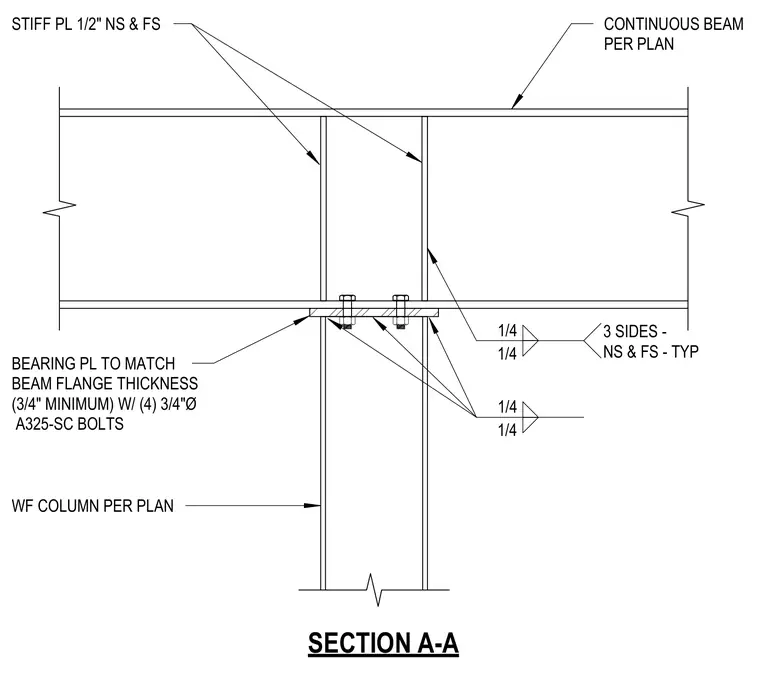

A continuous steel beam per plan frames over a wide flange column per plan, resting on a bearing plate sized to match the beam flange thickness with a three-quarter-inch minimum. The bearing plate is fastened with four three-quarter-inch diameter A325-SC bolts. One-half-inch stiffener plates are welded to the column on the near side and far side with quarter-inch fillet welds applied to three sides on both the near side and far side.
SECTION A-A CONTINUOUS BEAM PER PLAN WF COLUMN PER PLAN BEARING PL TO MATCH BEAM FLANGE THICKNESS (3/4" MINIMUM) W/ (4) 3/4"Ø A325-SC BOLTS STIFF PL 1/2" NS & FS 1/4 1/4 3 SIDES - NS & FS - TYP 1/4 1/4
