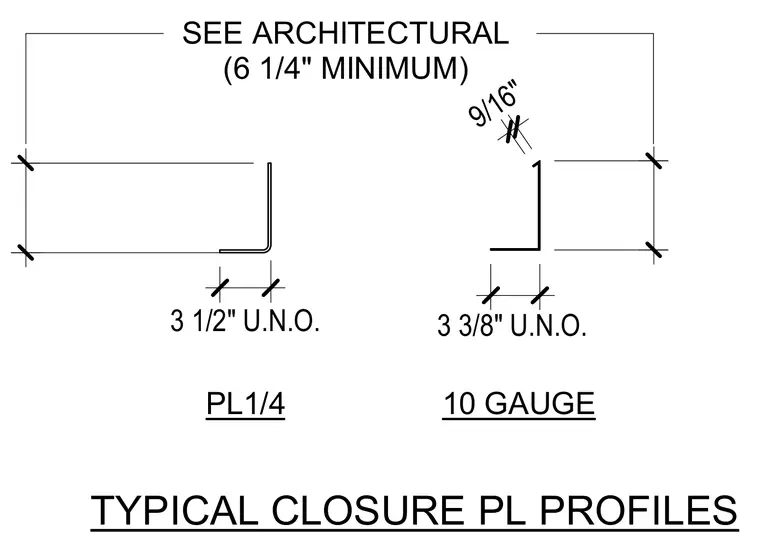

Typical closure plate profiles show steel angle configurations for metal decking conditions parallel or skewed to deck edges. Two distinct bent plate profiles are detailed, with one specified as a 1/4-inch plate and the other as 10 gauge. Dimension lines specify clearances of 3 1/2 inches and 3 3/8 inches unnotched, with a 9/16-inch dimension and a 6 1/4-inch minimum coordinated per architectural drawings.
3 1/2" U.N.O. 3 3/8" U.N.O. 9/16" SEE ARCHITECTURAL (6 1/4" MINIMUM) TYPICAL CLOSURE PL PROFILES PL1/4 10 GAUGE
