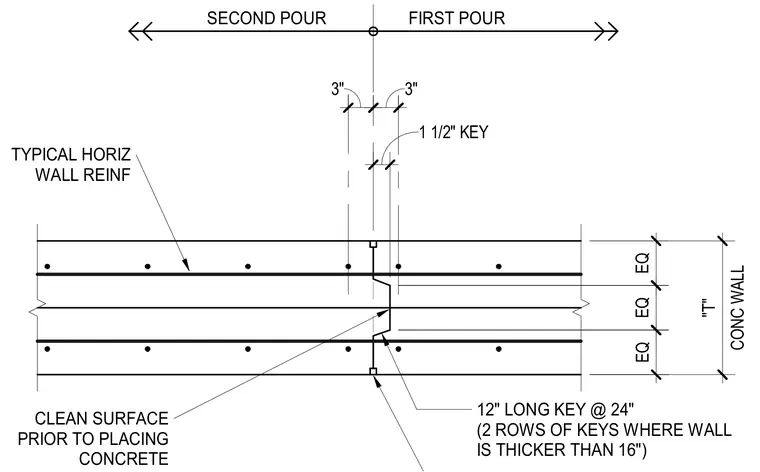

A concrete wall construction joint connects a first pour and a second pour using a keyed interface. The joint features a twelve-inch long key spaced at twenty-four inches, with two rows of keys required where the wall thickness exceeds sixteen inches. Typical horizontal wall reinforcement continues across the joint. The surface must be cleaned prior to placing concrete.
FIRST POUR TYPICAL HORIZ WALL REINF CLEAN SURFACE PRIOR TO PLACING CONCRETE 12" LONG KEY @ 24" (2 ROWS OF KEYS WHERE WALL IS THICKER THAN 16") EQ EQ EQ CONC WALL "T" 3" 3" 1 1/2" KEY SECOND POUR
