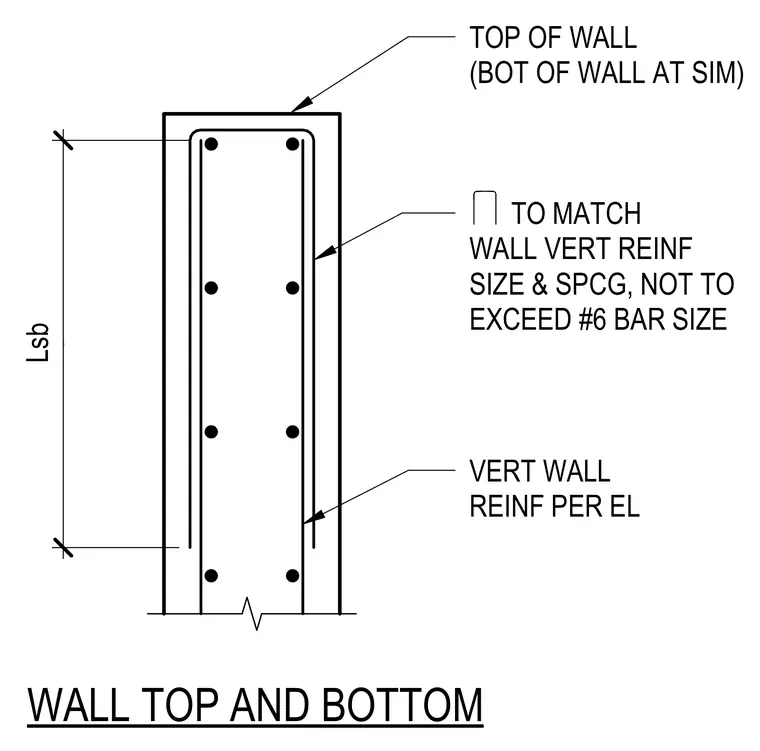

This structural detail shows the concrete wall top and bottom reinforcement assembly. Vertical wall reinforcement continues with a lap length of Lsb, matching the size and spacing of the main vertical reinforcing bars without exceeding a number six bar size.
27 7/8" WALL TOP AND BOTTOM TOP OF WALL (BOT OF WALL AT SIM) TO MATCH WALL VERT REINF SIZE & SPCG, NOT TO EXCEED #6 BAR SIZE VERT WALL REINF PER EL Lsb
