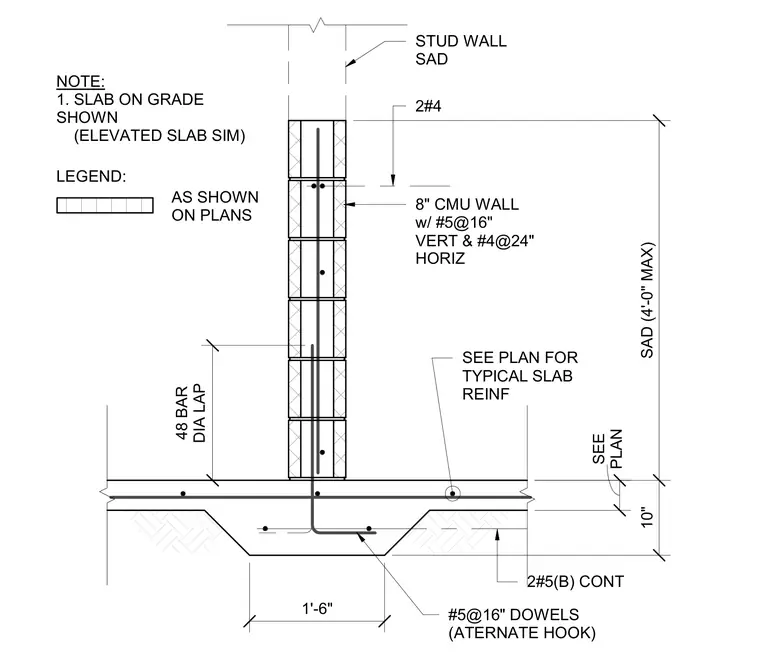

An 8-inch concrete masonry unit pony wall is anchored to a concrete slab with vertical #5 dowels spaced at 16 inches on center with alternating hooks. The masonry wall includes two #4 horizontal bars at the top bond beam and #5 vertical reinforcement at 16 inches and #4 horizontal reinforcement at 24 inches throughout. The concrete slab features a thickened section at the wall with two continuous #5 bottom bars and slab reinforcement sized per plan. A stud wall bears on top of the pony wall, and a slab on grade is shown with an elevated slab alternative note. A forty-eight bar diameter lap splice length is specified for the vertical reinforcement.
STUD WALL SAD SEE PLAN FOR TYPICAL SLAB REINF 8" CMU WALL w/ #5@16" VERT & #4@24" HORIZ 2#4 NOTE: 1. SLAB ON GRADE SHOWN (ELEVATED SLAB SIM) 2#5(B) CONT #5@16" DOWELS (ATERNATE HOOK) LEGEND: AS SHOWN ON PLANS 10" SAD (4'-0" MAX) PLAN SEE 1'-6" 48 BAR DIA LAP
