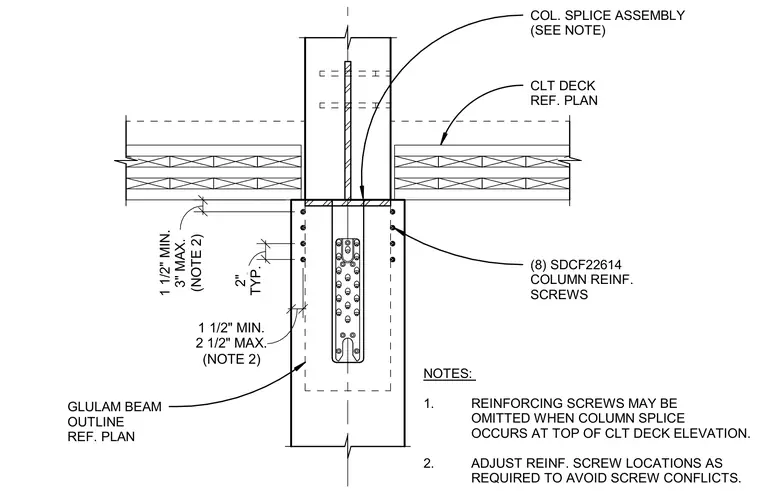

A glulam column splice assembly intersects with a cross-laminated timber deck and a glulam beam. Eight SDCF22614 column reinforcing screws are installed symmetrically to reinforce the connection. Edge distances and spacings are maintained at a minimum of one and one-half inches and a maximum of two and one-half inches, with typical vertical spacing at two inches on center. Reinforcing screws may be omitted when the column splice occurs at the top of the cross-laminated timber deck elevation, and screw locations are adjusted as required to avoid screw conflicts.
COL. SPLICE ASSEMBLY (SEE NOTE) GLULAM BEAM OUTLINE REF. PLAN CLT DECK REF. PLAN NOTES: 1. REINFORCING SCREWS MAY BE OMITTED WHEN COLUMN SPLICE OCCURS AT TOP OF CLT DECK ELEVATION. 2. ADJUST REINF. SCREW LOCATIONS AS REQUIRED TO AVOID SCREW CONFLICTS. (NOTE 2) 1 1/2" MIN. 2 1/2" MAX. (NOTE 2) 1 1/2" MIN. 3" MAX. TYP. 2" (8) SDCF22614 COLUMN REINF. SCREWS
