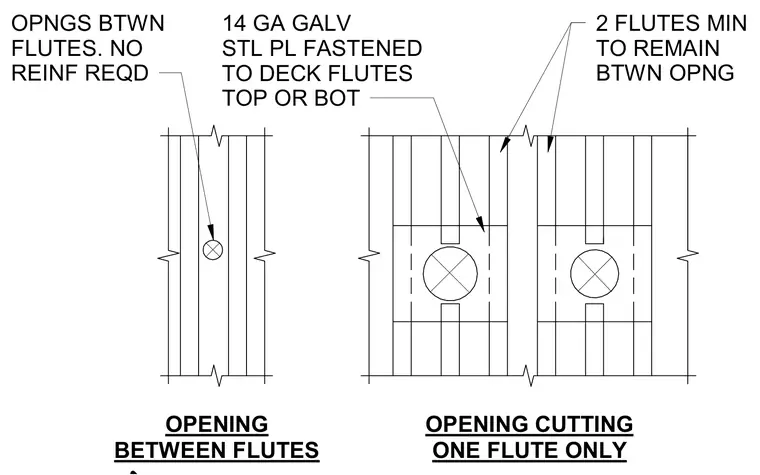

Small penetrations located between metal deck flutes require no additional reinforcement when spaced properly. Openings cutting through a single flute require a 14-gauge galvanized steel plate fastened to the top or bottom of the deck flutes. A minimum of two intact flutes must remain between adjacent openings. Plates must span across the cut flute to restore structural integrity.
OPENING BETWEEN FLUTES OPENING CUTTING ONE FLUTE ONLY OPNGS BTWN FLUTES. NO REINF REQD 14 GA GALV STL PL FASTENED TO DECK FLUTES TOP OR BOT 2 FLUTES MIN TO REMAIN BTWN OPNG
