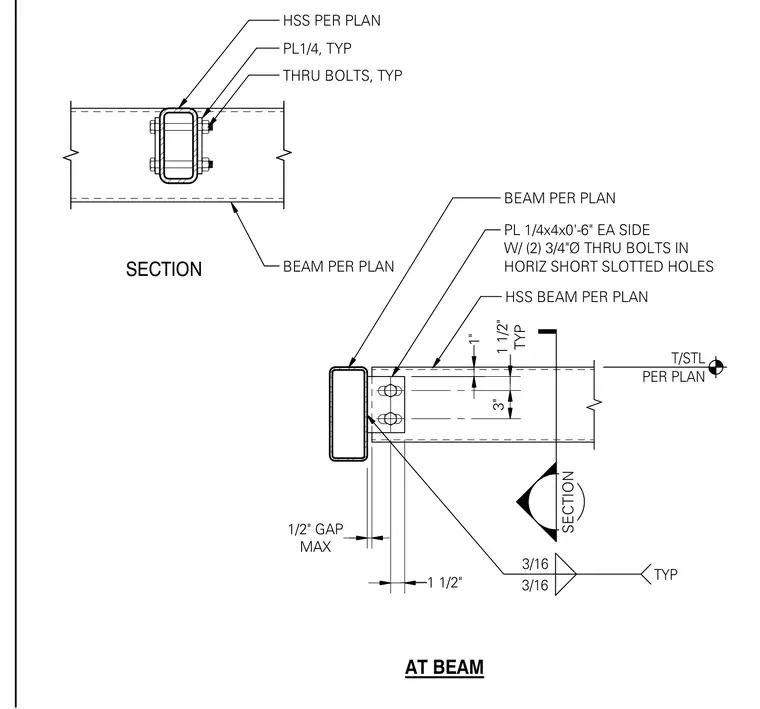

A hollow structural section post connects to a spreader beam per plan with a maximum one-half inch gap maintained between structural elements. Quarter-inch thick plates measuring four inches by six inches weld to each side of the hollow structural section beam with typical three-sixteenths inch fillet welds. Two three-quarter-inch diameter thru bolts in horizontal short slotted holes secure the assembly. Typical quarter-inch plates and thru bolts secure the hollow structural section per plan.
T/STL PER PLAN 1" MAX 1/2" GAP AT BEAM BEAM PER PLAN SECTION PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES BEAM PER PLAN 3/16 3/16 TYP HSS BEAM PER PLAN SECTION 3" TYP 1 1/2" 1 1/2"
