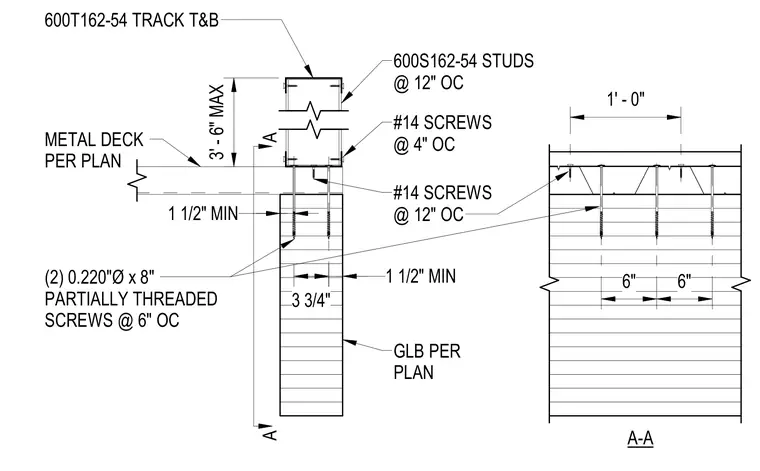

Cold-formed steel framing consists of 600S162-54 studs spaced at 12 inches on center tied into 600T162-54 top and bottom tracks with number 14 screws at 4 inches on center. The assembly rests on a glued laminated beam sized per plan and a metal deck sized per plan. Two 0.220-inch diameter by 8-inch partially threaded screws spaced at 6 inches on center anchor the assembly through the metal deck into the glued laminated beam. Number 14 screws at 12 inches on center secure the metal deck to the framing.
A A METAL DECK PER PLAN 1 1/2" MIN 1 1/2" MIN 6" 6" 3' - 6" MAX 600S162-54 STUDS @ 12" OC 600T162-54 TRACK T&B #14 SCREWS @ 4" OC (2) 0.220"Ø x 8" PARTIALLY THREADED SCREWS @ 6" OC #14 SCREWS @ 12" OC 1' - 0" A-A GLB PER PLAN 3 3/4"
