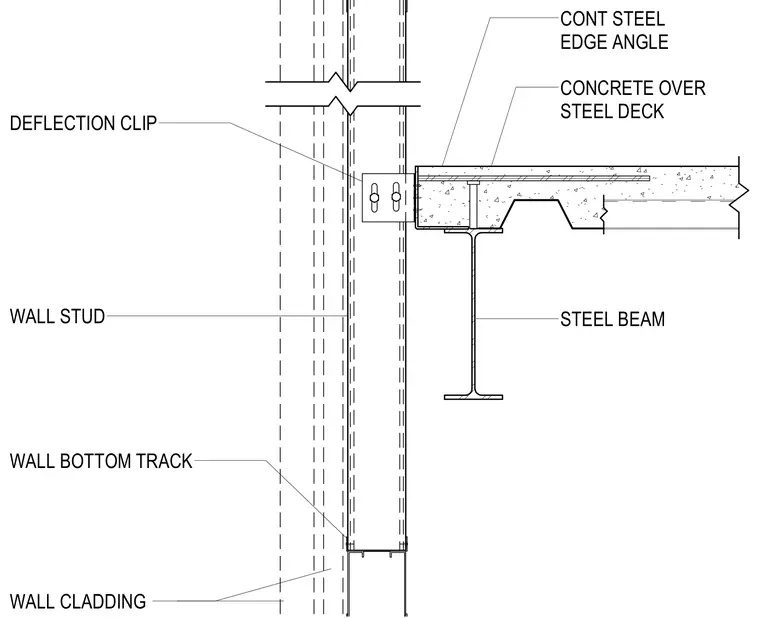

A continuous steel edge angle frames the perimeter of the concrete over steel deck slab, supported by a structural steel beam below. A deflection clip connects the wall stud assembly to the edge angle to accommodate vertical slab movement. The wall stud extends upward with a wall bottom track and exterior wall cladding. This configuration isolates the stud framing from structural deflection loads transferred through the floor slab.
WALL STUD CONT STEEL EDGE ANGLE CONCRETE OVER STEEL DECK STEEL BEAM WALL CLADDING DEFLECTION CLIP WALL BOTTOM TRACK
