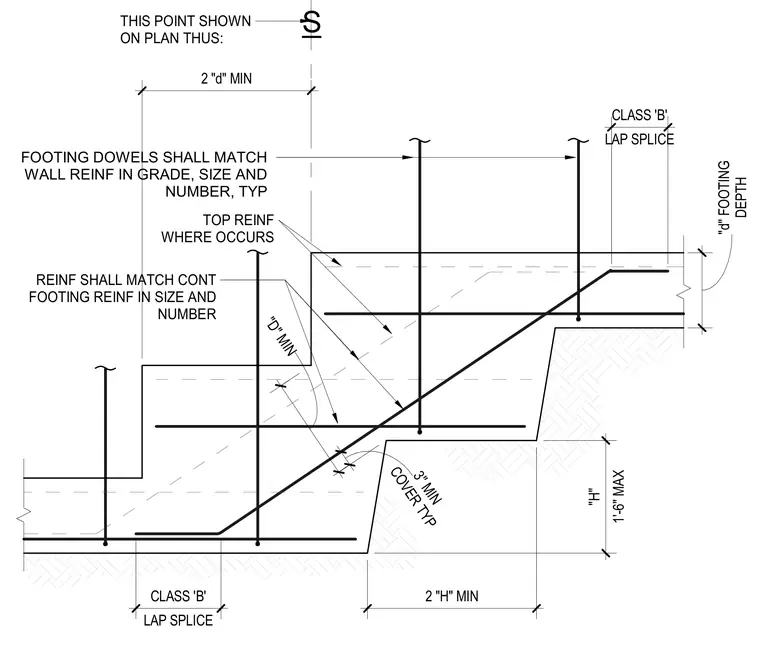

Continuous concrete footings transition between elevations using a stepped profile with overlapping longitudinal reinforcement. Footing reinforcement matches continuous footing sizes and numbers, while dowels match wall reinforcement in grade, size, and quantity. Horizontal steps maintain a minimum depth of two times the dimension "d" with a maximum step height of one foot six inches. Lapping requires a Class 'B' lap splice with a minimum three-inch concrete cover.
S REINF SHALL MATCH CONT FOOTING REINF IN SIZE AND NUMBER FOOTING DOWELS SHALL MATCH WALL REINF IN GRADE, SIZE AND NUMBER, TYP TOP REINF WHERE OCCURS THIS POINT SHOWN ON PLAN THUS: 2 "d" MIN LAP SPLICE CLASS 'B' 2 "H" MIN DEPTH "d" FOOTING 1'-6" MAX "H" "D" MIN COVER TYP 3" MIN LAP SPLICE CLASS 'B'
