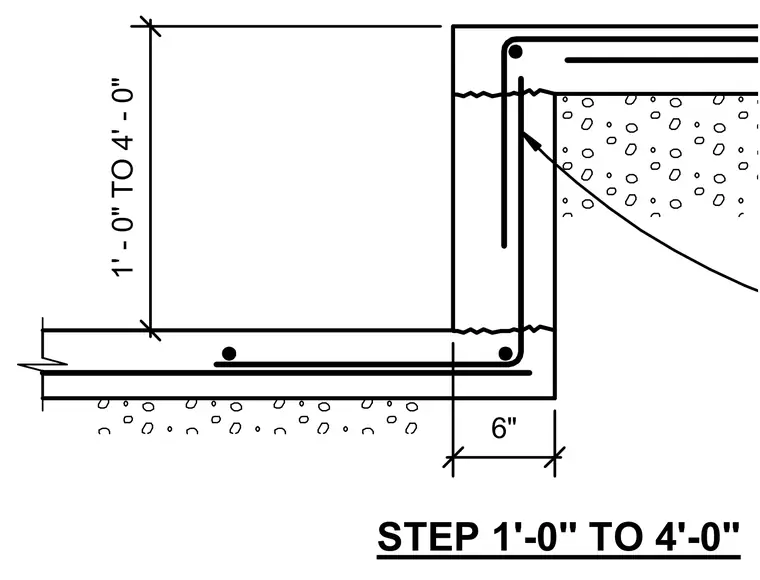

A structural detail presents a vertical step in a concrete slab-on-grade ranging from 1'-0" to 4'-0" in height. The assembly includes continuous reinforcing steel dowels and hooked bars bent around the 6" vertical step corner to maintain structural continuity between the high and low slab sections.
