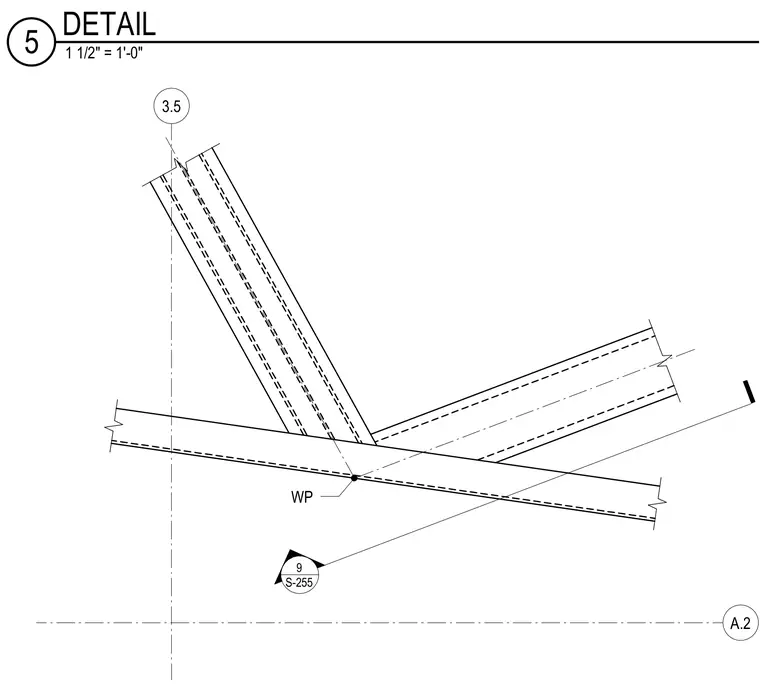

A diagonal bracing member intersection meets a continuous structural member at a defined work point. The connection aligns the member centerlines to intersect precisely at the work point coordinate. Grid lines and reference symbols provide positioning data for structural layout.
