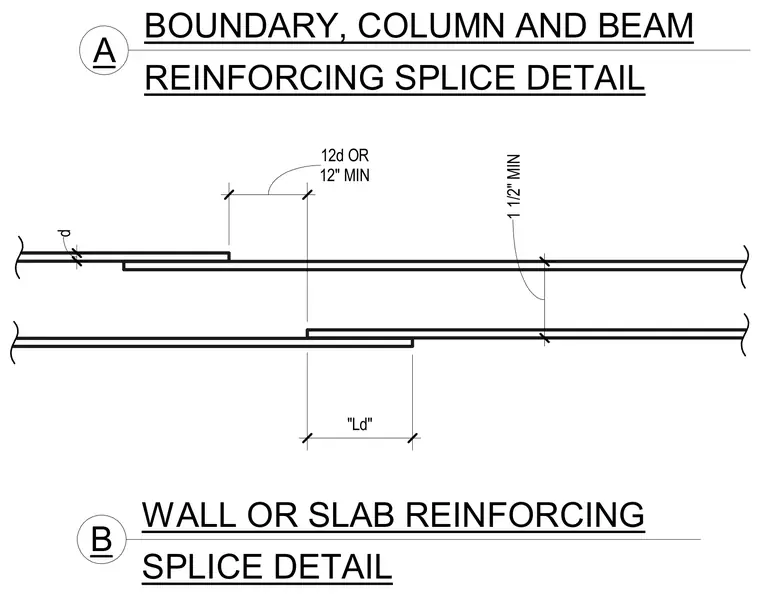

Reinforcing bars lap splice with a development length "Ld" or a minimum of twelve bar diameters or twelve inches. A minimum clearance of one and one-half inches is maintained between spliced reinforcing bars.
BOUNDARY, COLUMN AND BEAM REINFORCING SPLICE DETAIL SPLICE DETAIL WALL OR SLAB REINFORCING B A 12" MIN 12d OR d 1 1/2" MIN "Ld"
