Structural · S-3RBV6

12" Beam To Beam Step Detail At Column

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Decks Arches Connections / Plates

Connections

HSS Connection Beam-to-Beam

About this detail

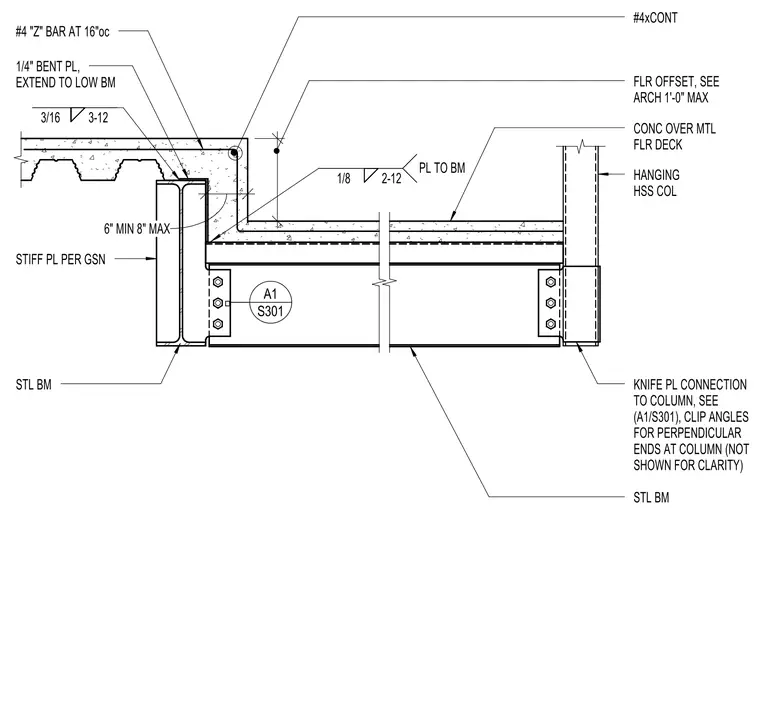

A steel beam frames into another steel beam with stiffener plates and a three-bolt connection, alongside a hanging hollow structural section column with a knife plate connection, supporting a concrete over metal floor deck. A quarter-inch bent plate extends to the lower beam, welded with a three-sixteenths inch weld at twelve inches on center. A one-eighth inch weld at twelve inches on center secures the plate to the beam. Additional components include number four Z-bars at sixteen inches on center and continuous reinforcing bars at the floor offset.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
