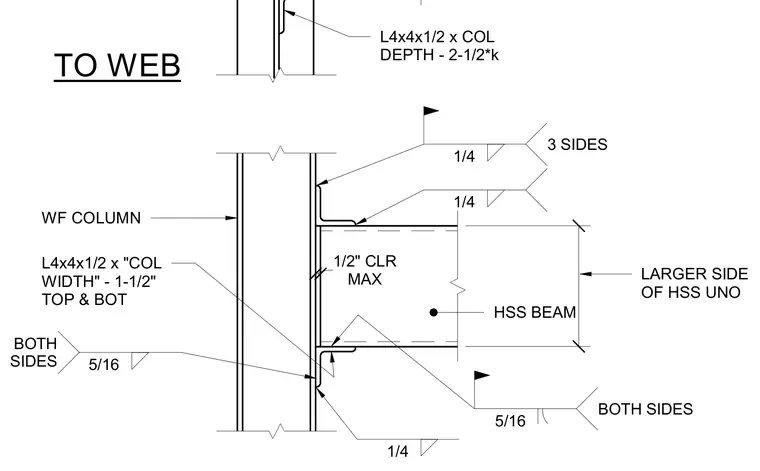

An HSS beam connects to the web of a wide flange column using top and bottom L4x4x1/2 structural steel angles sized to the column width minus one and a half inches. The angles weld to the wide flange column with five-sixteenth-inch fillet welds on both sides. The HSS beam connects to the angles with quarter-inch fillet welds on three sides, maintaining a maximum half-inch clearance to the column face. Field weld symbols and size callouts govern the attachment of the beam to the support angles.
L4x4x1/2 x "COL WIDTH" - 1-1/2" TOP & BOT WF COLUMN L4x4x1/2 x COL DEPTH - 2-1/2*k HSS BEAM TO WEB LARGER SIDE OF HSS UNO . MAX 1/2" CLR 5/16 BOTH SIDES 5/16 BOTH SIDES 1/4 1/4 3 SIDES 1/4
