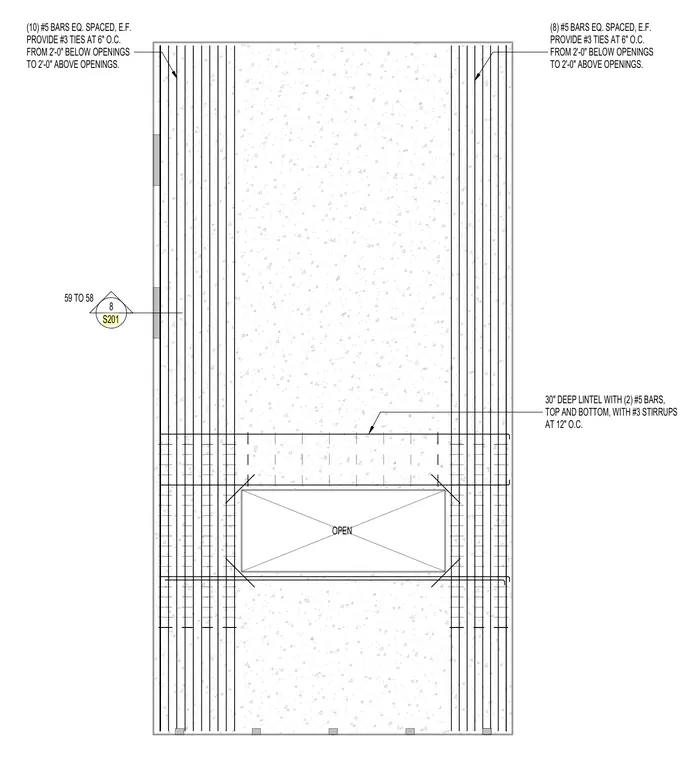

Ten number five bars are equally spaced on each face on one side of the jambs and eight number five bars are equally spaced on each face on the other side. Number three ties are spaced at six inches on center extending from two feet below the opening to two feet above the opening. A thirty inch deep lintel spans the opening with two number five bars top and bottom, reinforced with number three stirrups at twelve inches on center.
OPEN (8) #5 BARS EQ. SPACED, E.F. PROVIDE #3 TIES AT 6" O.C. FROM 2'-0" BELOW OPENINGS TO 2'-0" ABOVE OPENINGS. (10) #5 BARS EQ. SPACED, E.F. PROVIDE #3 TIES AT 6" O.C. FROM 2'-0" BELOW OPENINGS TO 2'-0" ABOVE OPENINGS. 30" DEEP LINTEL WITH (2) #5 BARS, TOP AND BOTTOM, WITH #3 STIRRUPS AT 12" O.C. 8 S201 59 TO 58
