Structural · S-3QQYH

Conduits Embedded in Timber Floor and Concrete Topping Slabs

Materials

Concrete Reinforced Concrete Steel Timber / Wood Glass / Glazing

Elements

Columns Beams Floors / Slabs Arches Reinforcing

About this detail

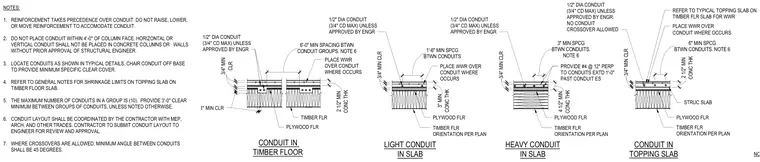

These structural details show electrical conduits embedded within timber floors and concrete topping slabs with varying slab thicknesses, clearances, and reinforcement spacing. Conduits of half-inch diameter with three-quarter-inch outer diameter maximum are placed with specific minimum clearances above plywood floors and timber structural slabs. Welded wire reinforcement is placed over conduits where indicated, and heavy conduit configurations include supplementary number four bars at twelve inches perpendicular to conduits extending one foot past conduit ends. General notes govern reinforcement precedence, conduit placement limitations near column faces, group spacing limits, and crossing angles.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
