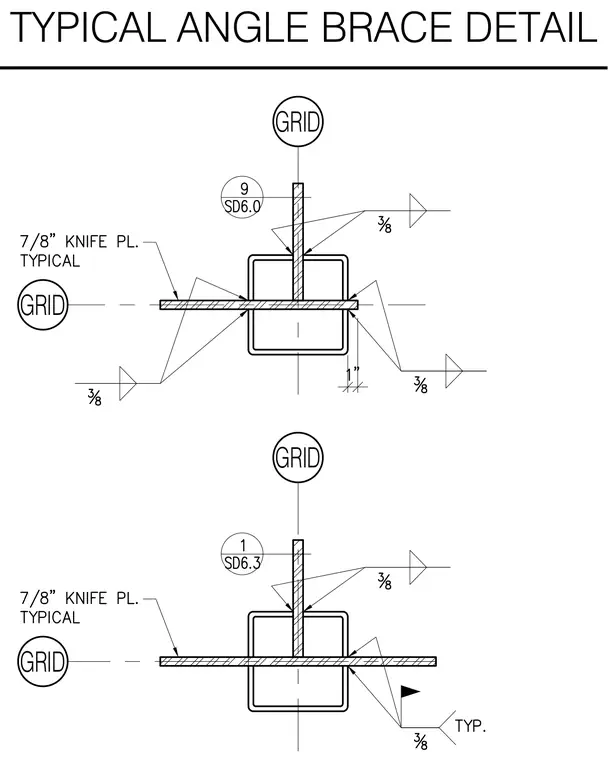

A seven-eighths inch knife plate connects through a hollow structural section column with three-eighths inch fillet welds. A one-inch dimension indicates the plate offset or clearance relative to the grid line. Additional gusset or knife plates extend along orthogonal grid lines with matching three-eighths inch fillet welds typical.
