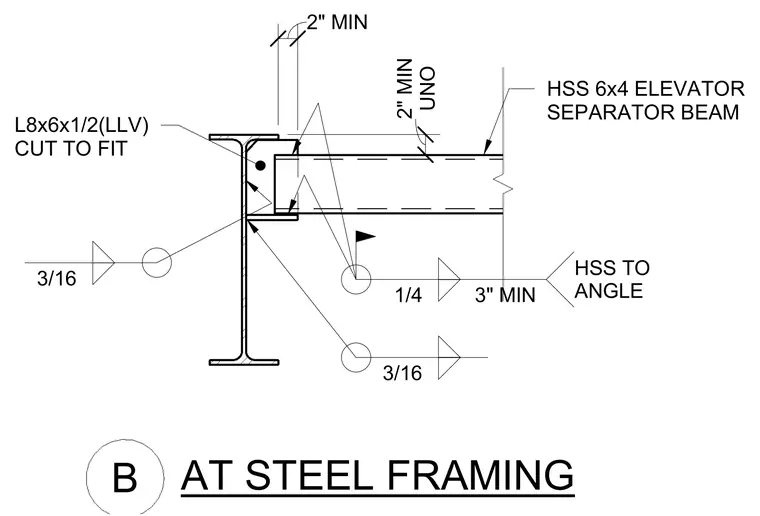

An HSS 6x4 elevator separator beam frames into the web of a structural steel member using an L8x6x1/2 angle clip cut to fit. The angle is welded to the supporting steel with a three-sixteenths inch fillet weld. The HSS beam connects to the angle using a one-quarter inch fillet weld with a three-inch minimum length. A two-inch minimum clearance is maintained at the top flange condition unless noted otherwise.
HSS 6x4 ELEVATOR SEPARATOR BEAM AT STEEL FRAMING B L8x6x1/2(LLV) CUT TO FIT 2" MIN UNO 2" MIN 1/4 3" MIN HSS TO ANGLE 3/16 3/16
