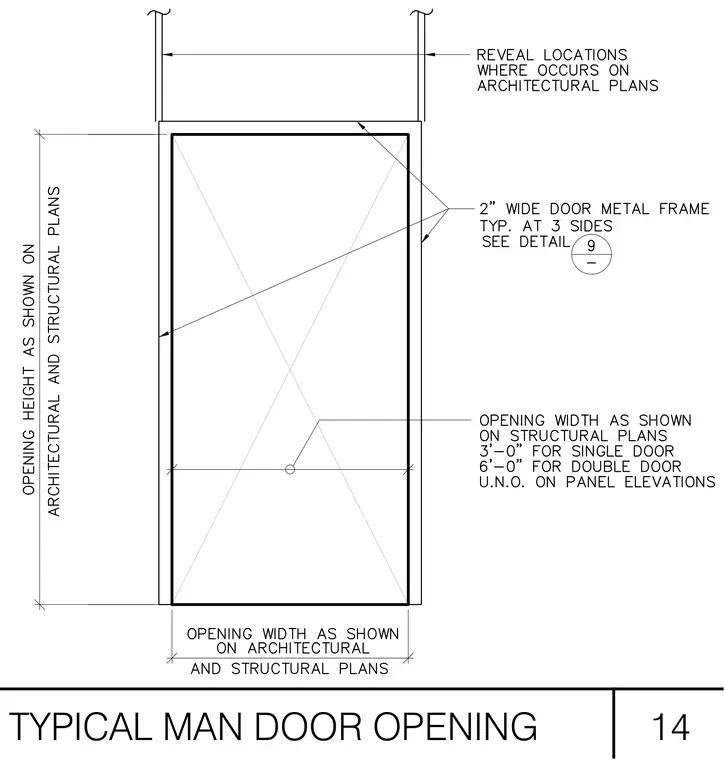

This drawing outlines the standard framing dimensions and coordination requirements for a man door opening. A two-inch wide metal frame typically spans three sides, referencing detail nine for specific connections. Opening widths are specified as three feet zero inches for single doors and six feet zero inches for double doors unless noted otherwise on panel elevations. Opening heights and reveal locations are coordinated per architectural and structural plans.
