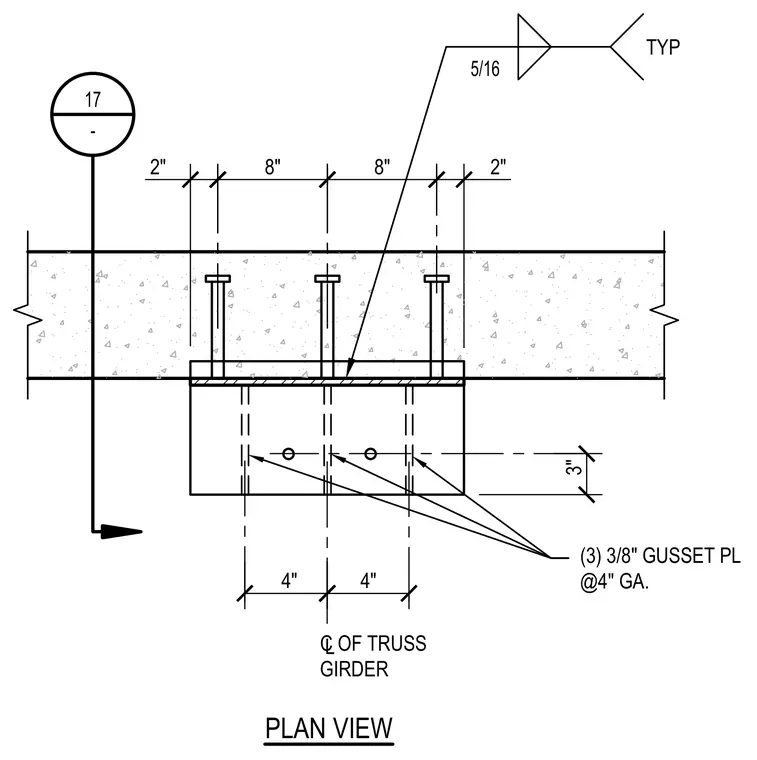

Three three-eighths-inch gusset plates spaced at four-inch gauge attach to the centerline of a truss girder. Shear studs embedded in the concrete slab anchor the connection assembly above. Five-sixteenths-inch typical fillet welds join the components as indicated on the plan view.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL @4" GA. 4" 4" C OF TRUSS GIRDER L 3" 8" 8" 17 - 5/16 TYP
