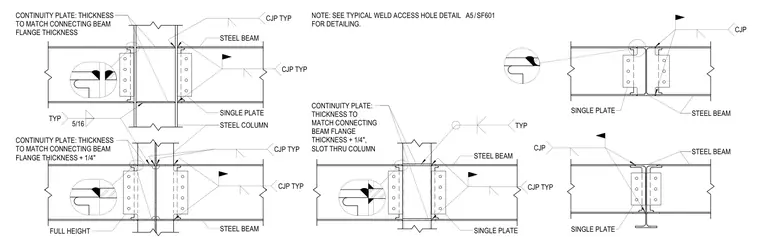

Steel beams frame into a steel column utilizing a single plate connection for shear transfer and complete joint penetration welds at the beam flanges for moment transfer. Continuity plates matching the connecting beam flange thickness are provided inside the column web, with specific variations including slotted continuity plates and full-height plates. A five-sixteenths inch fillet weld is applied typically at the single plate connections. Weld access holes are detailed per standard structural requirements.
STEEL BEAM STEEL BEAM CONTINUITY PLATE: THICKNESS TO MATCH CONNECTING BEAM FLANGE THICKNESS STEEL COLUMN CJP TYP CJP TYP FULL HEIGHT SINGLE PLATE CJP TYP CONTINUITY PLATE: THICKNESS TO MATCH CONNECTING BEAM FLANGE THICKNESS + 1/4" 5/16 TYP STEEL BEAM STEEL BEAM CJP CJP SINGLE PLATE SINGLE PLATE STEEL BEAM CONTINUITY PLATE: THICKNESS TO MATCH CONNECTING BEAM FLANGE THICKNESS + 1/4", SLOT THRU COLUMN CJP TYP SINGLE PLATE TYP CJP TYP NOTE: SEE TYPICAL WELD ACCESS HOLE DETAIL FOR DETAILING. /SF601 A5
