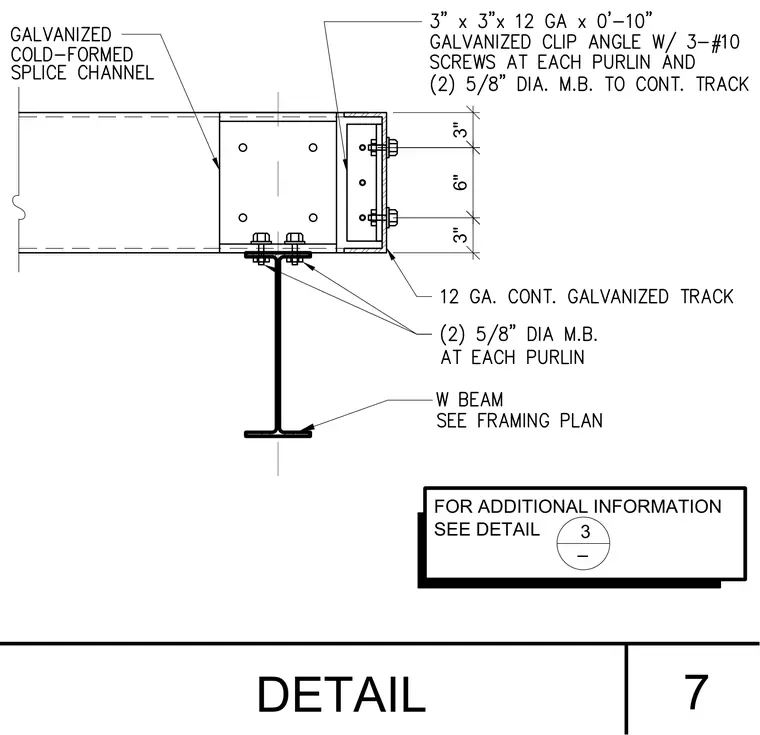

A galvanized cold-formed splice channel connects to the purlin framing. A three-inch by three-inch by twelve gauge by zero-foot-ten-inch galvanized clip angle secures with three number ten screws at each purlin and two five-eighth-inch diameter machine bolts to the continuous track. The twelve gauge continuous galvanized track attaches to the top flange of the wide flange beam with two five-eighth-inch diameter machine bolts at each purlin. The wide flange beam size is specified per the framing plan.
