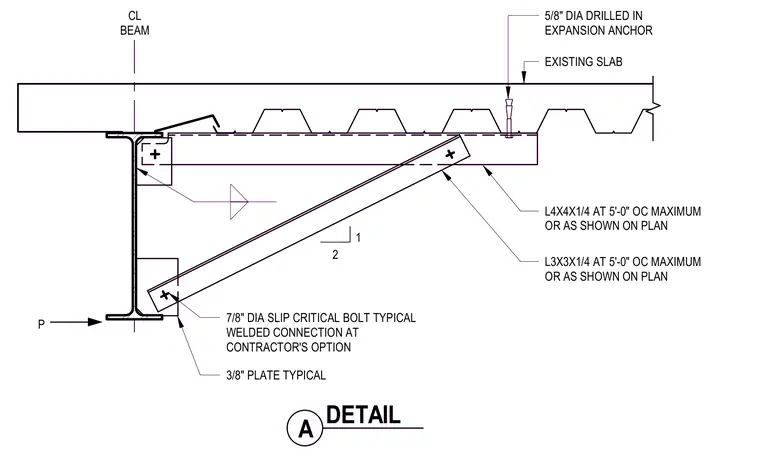

An angle brace connects a steel beam to an existing concrete slab using structural angle members spaced at five feet on center maximum or per plan. The connection employs seven-eighths inch diameter slip-critical bolts through three-eighth inch connection plates, with an option for welded connections at the contractor's discretion. Five-eighth inch drilled-in expansion anchors secure the top angle assembly to the existing slab. The diagonal brace member frames into connection plates welded or bolted to the beam web and underside of the slab assembly.
L4X4X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN L3X3X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN EXISTING SLAB 5/8" DIA DRILLED IN EXPANSION ANCHOR CL BEAM 7/8" DIA SLIP CRITICAL BOLT TYPICAL WELDED CONNECTION AT CONTRACTOR'S OPTION 3/8" PLATE TYPICAL 1 2 P A DETAIL L4X4X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN L3X3X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN EXISTING SLAB 5/8" DIA DRILLED IN EXPANSION ANCHOR CL BEAM 7/8" DIA SLIP CRITICAL BOLT TYPICAL WELDED CONNECTION AT CONTRACTOR'S OPTION 3/8" PLATE TYPICAL 1 2 P A DETAIL
