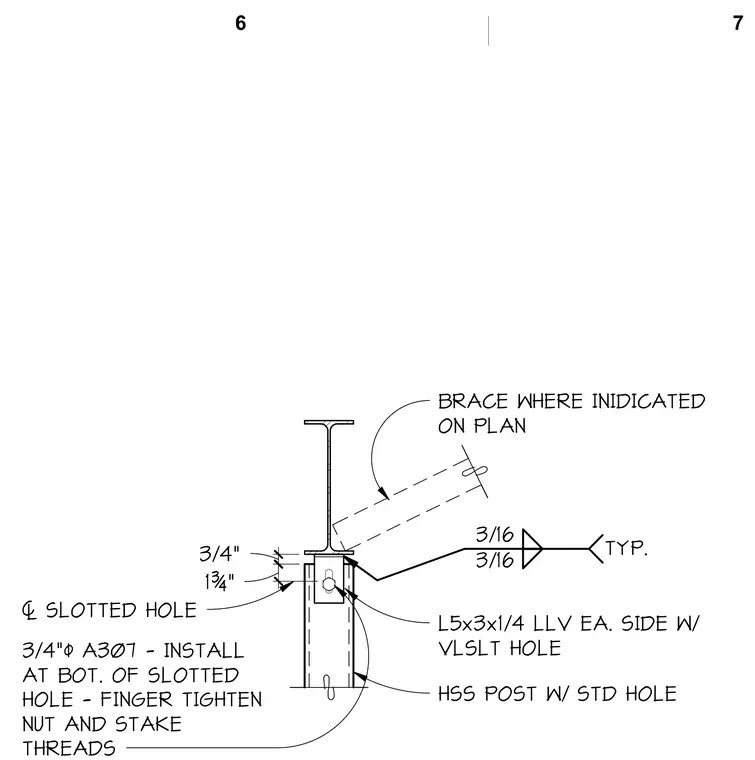

A structural steel bracing connection features a hollow structural section post with a standard hole, tied with L5x3x1/4 angles long legs vertical on each side containing vertical slotted holes. Three-quarter inch diameter ASTM A307 bolts are installed at the bottom of the slotted holes, finger-tightened with nuts and staked threads to permit movement. Three-sixteenth inch fillet welds are applied typically. The assembly accommodates movement per plan requirements.
1 3/ 4" 1 " 3/4" 1¾" 3/16 3/16 TYP. 7 SLOTTED HOLE 3/4", A307 - INSTALL AT BOT. OF SLOTTED HOLE - FINGER TIGHTEN NUT AND STAKE THREADS HSS POST W/ STD HOLE L5x3x1/4 LLV EA. SIDE W/ VLSLT HOLE BRACE WHERE INIDICATED ON PLAN 6 7
