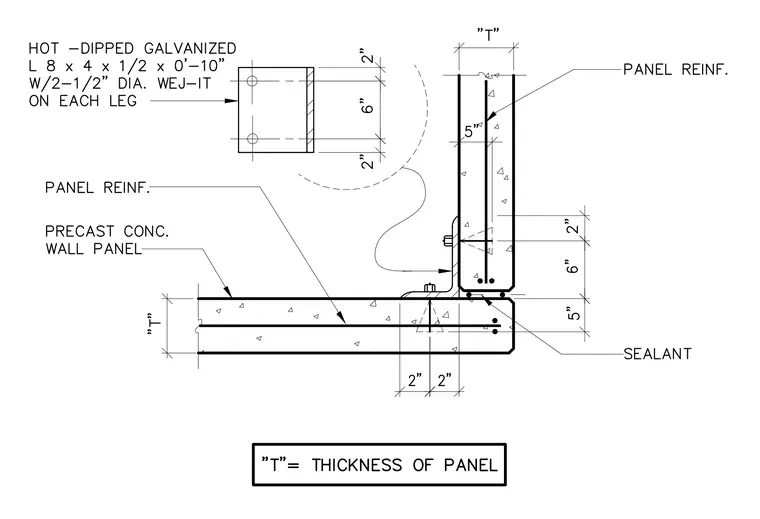

Precast concrete wall panels intersect at a right-angle corner joint featuring continuous panel reinforcement and an exterior sealant bead. The connection is anchored by a hot-dipped galvanized L 8 x 4 x 1/2 angle, measuring zero feet ten inches in length, attached to each panel leg with two one-half-inch diameter Wej-It wedge anchors. Dimensions detail a two-inch edge clearance to the anchor bolts, a six-inch spacing between bolts, and five-inch panel thickness dimensions denoted as "T".
