Structural · S-3PNDZ

Partition Support and Bracing Detail at Concrete Deck

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Partitions Decks Bracing Anchors / Embeds

Connections

Bracing Connection Bolted Connection Deck Attachment Embed Plate

About this detail

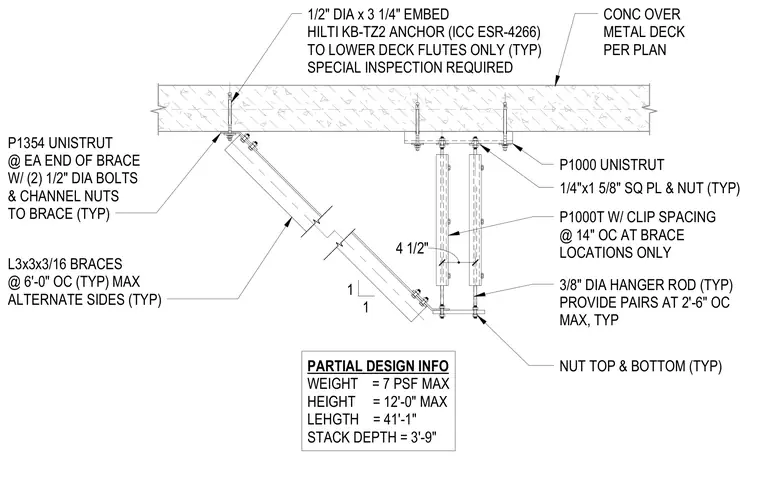

A partition support and bracing assembly is anchored to a concrete over metal deck slab. Lateral support is provided by L3x3x3/16 angle braces spaced at 6'-0" on center maximum on alternate sides, secured with P1354 Unistrut channels, two 1/2-inch diameter bolts and channel nuts, and 1/2-inch diameter by 3-1/4-inch embedment Hilti KB-TZ2 anchors fastened to the lower deck flutes only with special inspection required. Vertical support utilizes pairs of 3/8-inch diameter hanger rods spaced at 2'-6" on center maximum, connected to P1000T Unistrut with clip spacing at 14 inches on center at brace locations, and secured with top and bottom nuts. A square plate measuring 1/4" x 1 5/8" with a nut is provided at the P1000 Unistrut connections. Design parameters limit the partition weight to 7 PSF maximum, height to 12'-0" maximum, length to 41'-1", and stack depth to 3'-9".
