Architectural · S-3PN5H

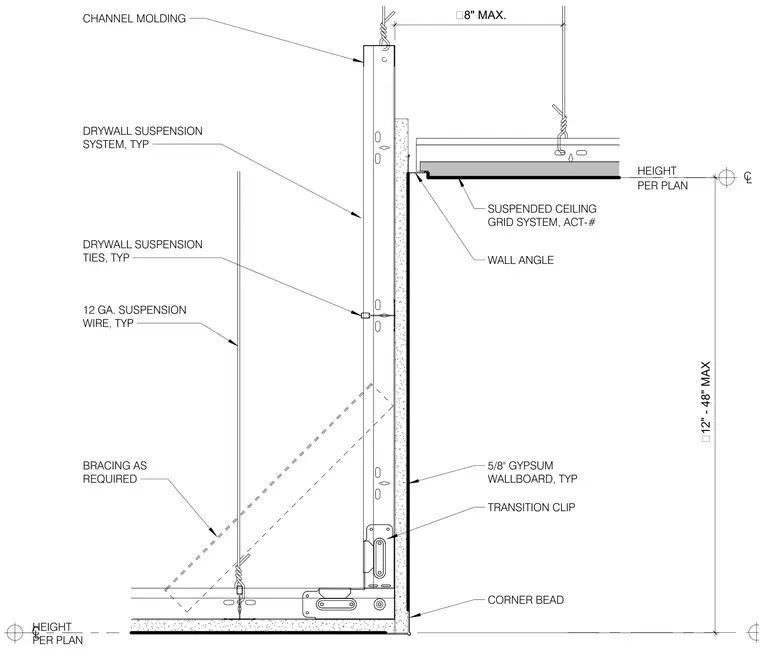

Section - Low Gypsum Board to High Acoustical Ceiling

Materials

Elements

About this detail

This wall-to-ceiling transition detail connects a lower gypsum board ceiling system to an adjacent higher acoustical ceiling grid. The assembly utilizes twelve-gauge suspension wires and drywall suspension ties to support the framing, supplemented by diagonal bracing as required. A channel molding and wall angle interface with five-eighths-inch gypsum wallboard and a transition clip to complete the junction.
