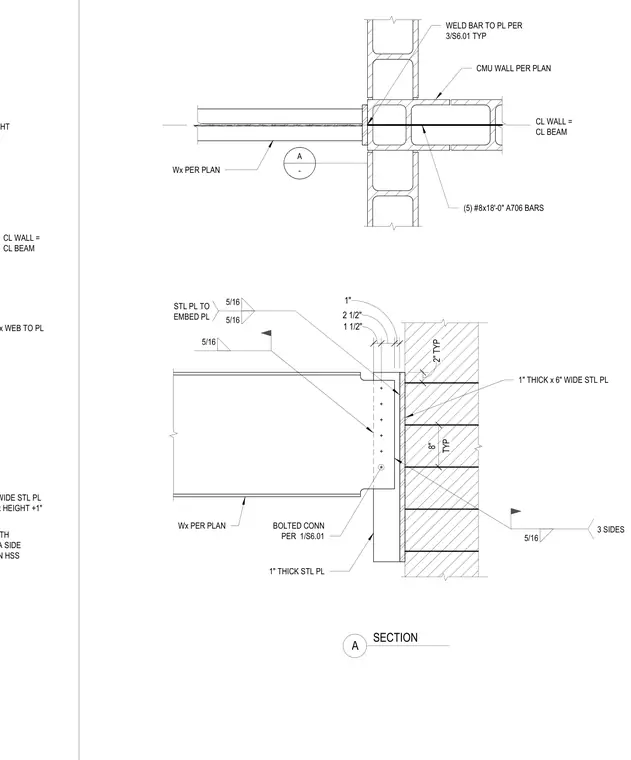

A surface-mounted outrigger drag connection frames a steel wide-flange beam into a reinforced concrete masonry unit wall. The connection utilizes a one-inch-thick steel plate welded to the beam web with five-sixteenth-inch fillet welds on three sides, secured to a matching one-inch-thick by six-inch-wide steel embed plate in the masonry wall. Five number eight by eighteen-foot A706 reinforcing bars are embedded horizontally within the CMU cells. Additional one-quarter-inch full-depth stiffener plates are centered on each side of the beam web per plan. Bars are welded to plates per detail 3/S6.01, and bolted connections are executed per detail 1/S6.01.
CL WALL = CL BEAM Wx WEB TO PL 1/2" STL PL TO MATCH HEIGHT WHERE Wx WEB DOES NOT 1" THICK x 8" WIDE STL PL TO MATCH Wx HEIGHT +1" ALL REINF SHALL BE A706 BARS** 1/4" FULL DEPTH STIFFENER EA SIDE CENTERED ON HSS Wx PER PLAN CL WALL = CL BEAM CMU WALL PER PLAN A SECTION WELD BAR TO PL PER 3/S6.01 TYP 2" TYP A - 5/16 5/16 STL PL TO EMBED PL 1" THICK x 6" WIDE STL PL (5) #8x18'-0" A706 BARS TYP 8" BOLTED CONN PER 1/S6.01 5/16 3 SIDES 1 1/2" 2 1/2" 1" 5/16 1" THICK STL PL Wx PER PLAN
