Structural · S-3P92H

Post-Tensioned Slab Edge and Opening Reinforcement Detail

Materials

Elements

Columns Walls Floors / Slabs Reinforcing

About this detail

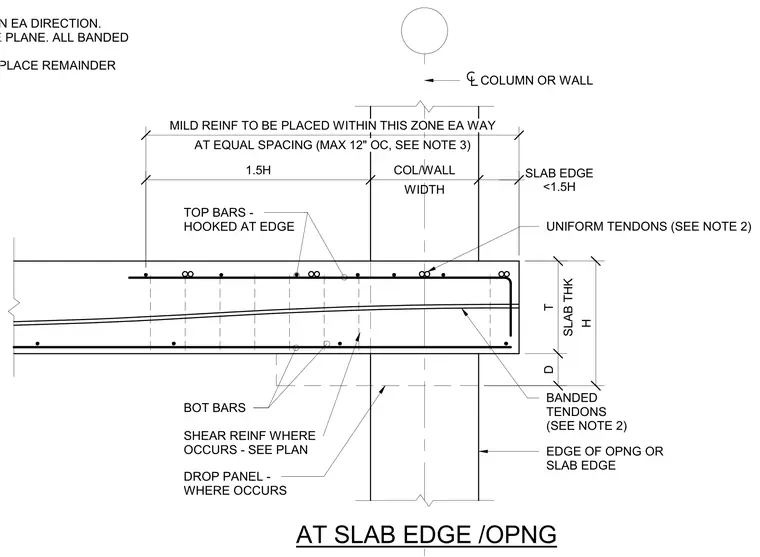

Post-tensioned concrete slab edge and opening reinforcement featuring banded tendons, uniform tendons, top bars, bottom bars, and mild reinforcement placed within specified zones each way at equal spacing not exceeding twelve inches on center. Banded tendons and top reinforcement are positioned in the same plane with a minimum spacing of four inches on center for banded rebar. Drop panels are provided where indicated, and top bars are hooked at the slab edge or opening edge. Additional concrete cover is provided for construction requiring a fire rating of two hours or more.
