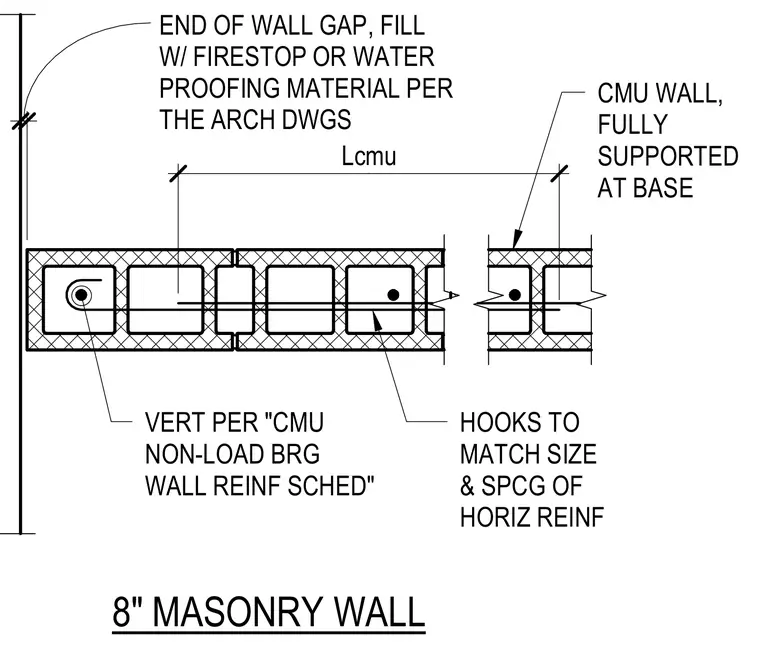

An eight-inch concrete masonry unit wall is fully supported at the base with vertical reinforcing placed according to the non-load bearing wall reinforcement schedule. Horizontal reinforcement features hooks sized and spaced to match the horizontal reinforcing schedule. The end of the wall gap is filled with firestop or waterproofing material per the architectural drawings.
1/2" CMU WALL, FULLY SUPPORTED AT BASE END OF WALL GAP, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 8" MASONRY WALL 29" Lcmu HOOKS TO MATCH SIZE & SPCG OF HORIZ REINF
