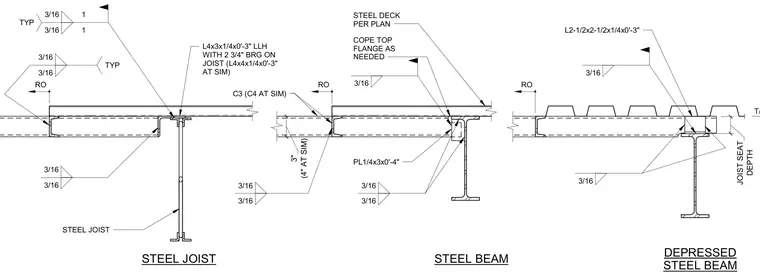

Steel joist bearing and connection details at steel beams and depressed steel beams, featuring steel deck per plan. The assembly incorporates angles such as L4x3x1/4x0'-3" LLH with a two and three-quarter inch bearing on joist, along with L4x4x1/4x0'-3" at similar conditions and L2-1/2x2-1/2x1/4x0'-3". A plate measuring one-quarter by three by zero feet four inches is provided with a quarter-inch fillet weld typical. The top flange of the steel beam is coped as needed to accommodate the joist seat depth.
3/16 3/16 3/16 3/16 3/16 3/16 3/16 L2-1/2x2-1/2x1/4x0'-3" STEEL DECK PER PLAN C3 (C4 AT SIM) PL1/4x3x0'-4" DEPTH JOIST SEAT COPE TOP FLANGE AS NEEDED STEEL BEAM DEPRESSED STEEL BEAM STEEL JOIST L4x3x1/4x0'-3" LLH WITH 2 3/4" BRG ON JOIST (L4x4x1/4x0'-3" AT SIM) (4" AT SIM) 3" STEEL JOIST RO RO 3/16 3/16 RO 3/16 3/16 TYP 3/16 1 3/16 1 TYP
