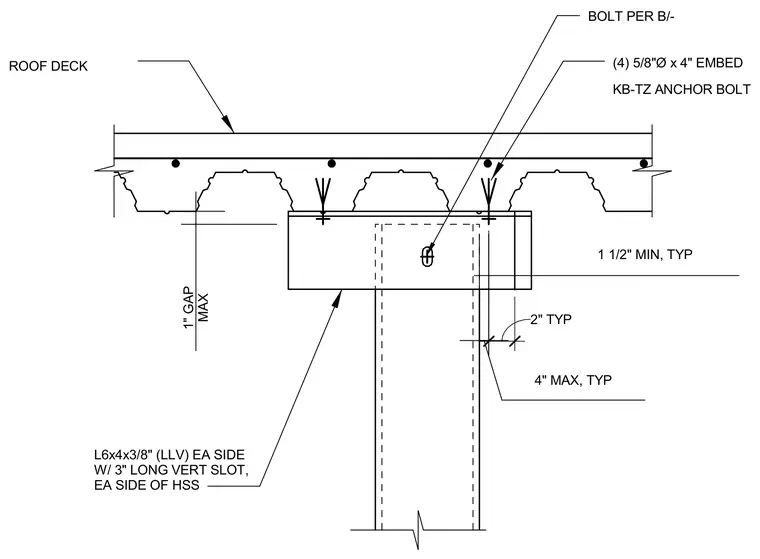

A structural roof deck bears above a hollow structural section column, separated by a maximum one-inch gap. Steel angles sized L6x4x3/8 with long vertical slots attach to each side of the hollow structural section column using bolts. Four 5/8-inch diameter by 4-inch embedment KB-TZ anchor bolts secure the assembly with typical edge distances of 1-1/2 inches minimum and 4 inches maximum.
1" GAP MAX 4" MAX, TYP 1 1/2" MIN, TYP (4) 5/8"Ø x 4" EMBED KB-TZ ANCHOR BOLT ROOF DECK L6x4x3/8" (LLV) EA SIDE W/ 3" LONG VERT SLOT, EA SIDE OF HSS 2" TYP BOLT PER B/-
