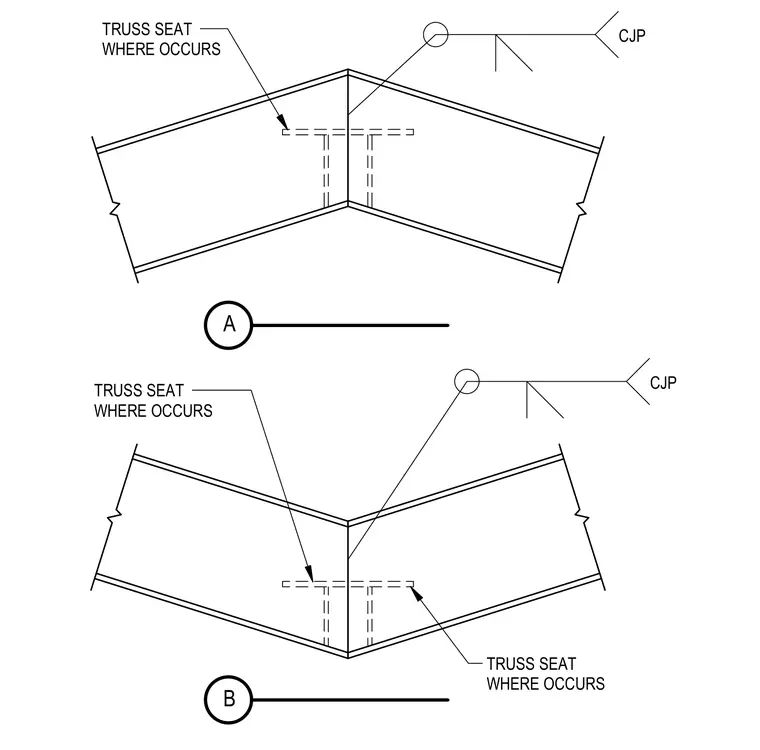

Two structural trusses meet at a slope break and connect via a complete joint penetration weld at the ridge intersection. A truss seat is provided where required to support the assembly. The members are joined with continuous full penetration welds across the joint interface.
CJP CJP TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS A B
