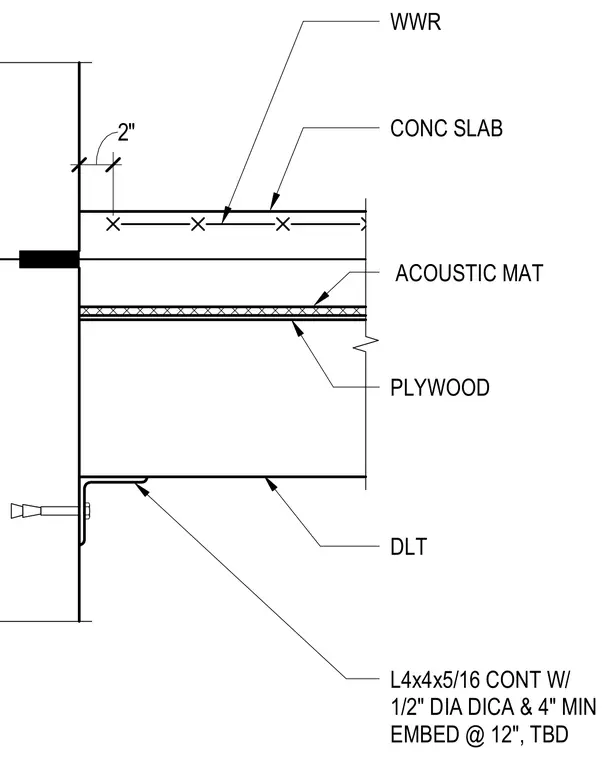

A concrete slab is cast over an acoustic mat and a plywood layer, reinforced with welded wire reinforcement. The assembly bears on a continuous 4x4x5/16 inch steel angle connected with half-inch diameter anchors at twelve inches on center with four inches minimum embedment. The continuous angle supports a two-inch dowel laminated timber floor element.
CONC SLAB ACOUSTIC MAT WWR L4x4x5/16 CONT W/ 1/2" DIA DICA & 4" MIN EMBED @ 12", TBD PLYWOOD 2" DLT
