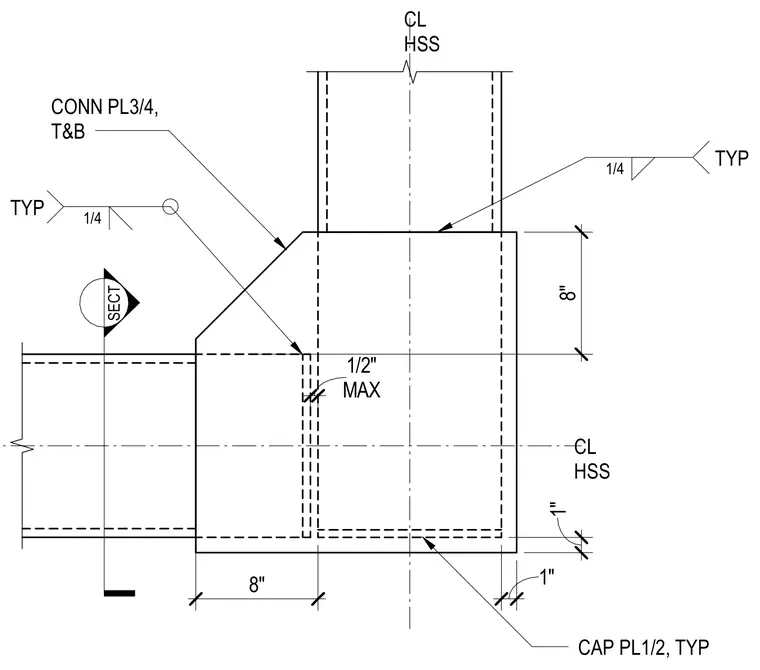

A hollow structural section column frames into a horizontal member using a three-quarter inch thick connection plate welded top and bottom. A one-half inch thick cap plate is welded typical to the assembly with quarter-inch fillet welds. Dimensions indicate an eight-inch vertical and horizontal spacing with a one-inch edge clearance and a maximum one-half inch gap.
SECT 8" CL HSS CL HSS TYP 1/4 TYP 1/4 CAP PL1/2, TYP 1" 1" 8" CONN PL3/4, T&B MAX 1/2"
