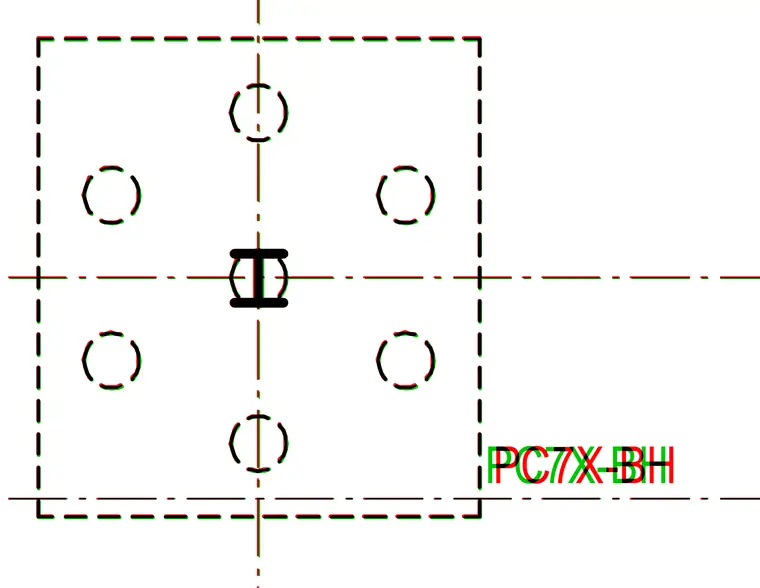

A pile cap foundation layout in plan view features a central steel section. Six anchor bolts or sleeve locations are arranged symmetrically around the perimeter. Centerlines intersect at the central structural member.
