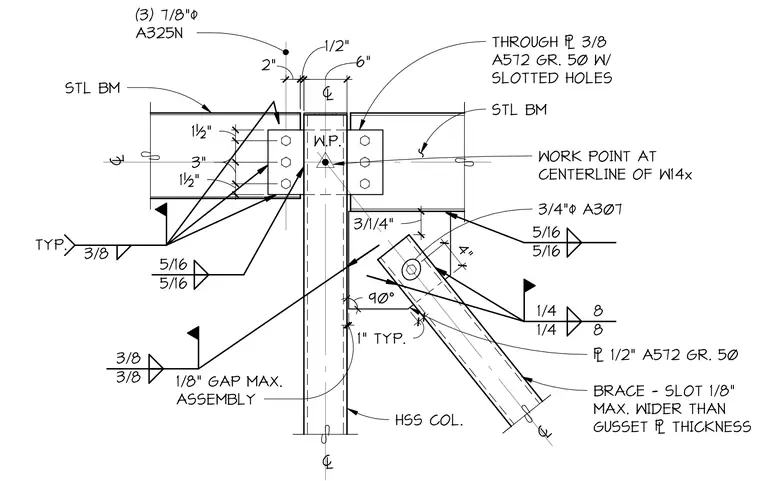

A structural steel beam frames into a hollow structural section column using a three-eighths-inch thick A572 Grade 50 through plate with slotted holes and a vertical work point at the centerline of the W14x column. The steel beams connect to the column plates via three seven-eighths-inch diameter A325N high-strength bolts and three-eighths-inch fillet welds. A diagonal structural steel brace is welded to a one-half-inch thick A572 Grade 50 gusset plate with quarter-inch and five-sixteenths-inch fillet welds, maintaining a one-eighth-inch maximum gap at assembly. The brace is detailed with a slot one-eighth inch maximum wider than the gusset plate thickness, and is secured with three-quarter-inch diameter A307 bolts.
4" 3/1/4" 5/16 5/16 1/4 8 1/4 8 1" TYP. 90° 90° STL BM BRACE - SLOT 1/8" MAX. WIDER THAN GUSSET ' THICKNESS ' 1/2" A572 GR. 50 HSS COL. 5/16 5/16 3/8 TYP. THROUGH ' 3/8 A572 GR. 50 W/ SLOTTED HOLES * * 1½" 3" 1½" 6" 2" * STL BM (3) 7/8". A325N 1/2" 3/8 3/8 3/4". A307 W.P. 1/8" GAP MAX. ASSEMBLY * WORK POINT AT CENTERLINE OF W14x
