Structural · S-3N37E

Typical Deck Bearing Angles At Steel Column

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Arches Roof / Floor Openings

Connections

Welded Connection

About this detail

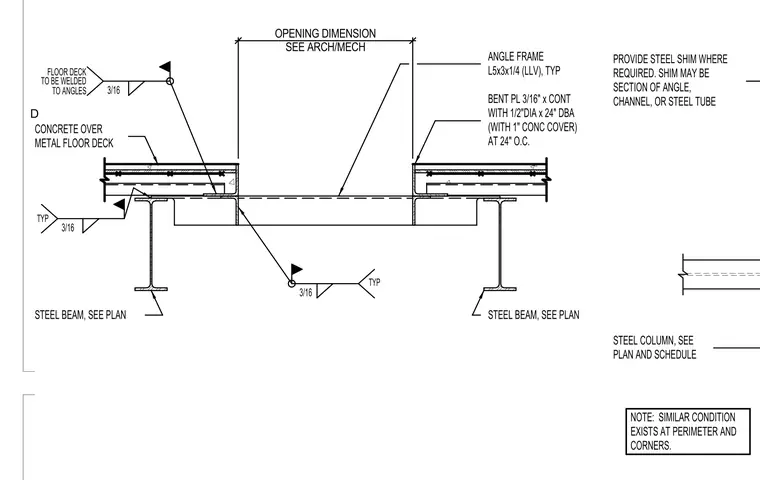

A floor opening is framed with typical L5x3x1/4 structural angles seated on steel beams. The metal floor deck is topped with concrete and welded to the angles with three-sixteenths inch fillet welds. A continuous three-sixteenths inch bent plate anchored with one-half inch diameter by twenty-four inch deformed bar anchors at twenty-four inches on center forms the perimeter of the opening, maintaining one inch of concrete cover. Steel shims made from sections of angles, channels, or steel tubes are provided where required. Similar conditions apply at building perimeters and corners.
