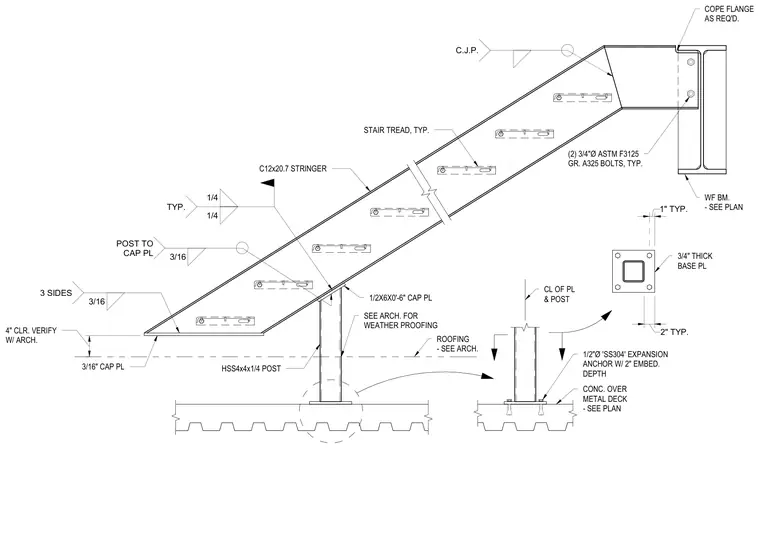

A C12x20.7 steel channel stringer connects to a wide flange beam with a top flange cope and complete joint penetration weld, secured by two three-quarter-inch diameter ASTM F3125 Grade A325 bolts. An intermediate HSS4x4x1/4 structural steel post with a three-sixteenth-inch cap plate welded on three sides supports the stringer. The post sits on a three-quarter-inch thick base plate anchored to a concrete over metal deck slab with half-inch diameter stainless steel expansion anchors providing a two-inch embedment depth. Weatherproofing and roofing details at the base are coordinated with the architectural drawings.
2" TYP. 1" TYP. 4" CLR. VERIFY W/ ARCH. 3/16" CAP PL HSS4x4x1/4 POST 1/2X6X0'-6" CAP PL ROOFING - SEE ARCH. SEE ARCH. FOR WEATHER PROOFING C12x20.7 STRINGER STAIR TREAD, TYP. WF BM. - SEE PLAN 3/4" THICK BASE PL CL OF PL & POST 1/2"Ø 'SS304' EXPANSION ANCHOR W/ 2" EMBED. DEPTH CONC. OVER METAL DECK - SEE PLAN 3/16 3 SIDES 3/16 POST TO CAP PL 1/4 1/4 TYP. C.J.P. COPE FLANGE AS REQ'D. (2) 3/4"Ø ASTM F3125 GR. A325 BOLTS, TYP.
