Buckling-Restrained Braced Frame Gusset Connection at Column and Beam

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Welded Connection

About this detail

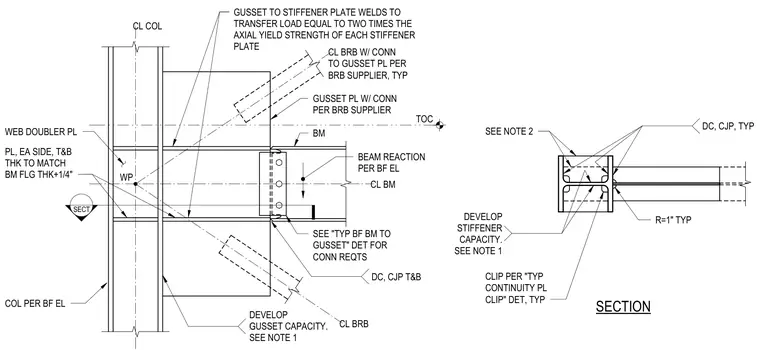

A structural steel connection joins a buckling-restrained brace to a column and beam assembly using a gusset plate welded to the column centerline. Stiffener plates matching the beam flange thickness plus one-quarter inch are welded to each side of the web, backed by web doubler plates at the column web. The gusset-to-stiffener plate welds transfer a load equal to twice the axial yield strength of each stiffener plate. A complete joint penetration weld secures the connection, and typical continuity plate clips are detailed with a one-inch radius.
