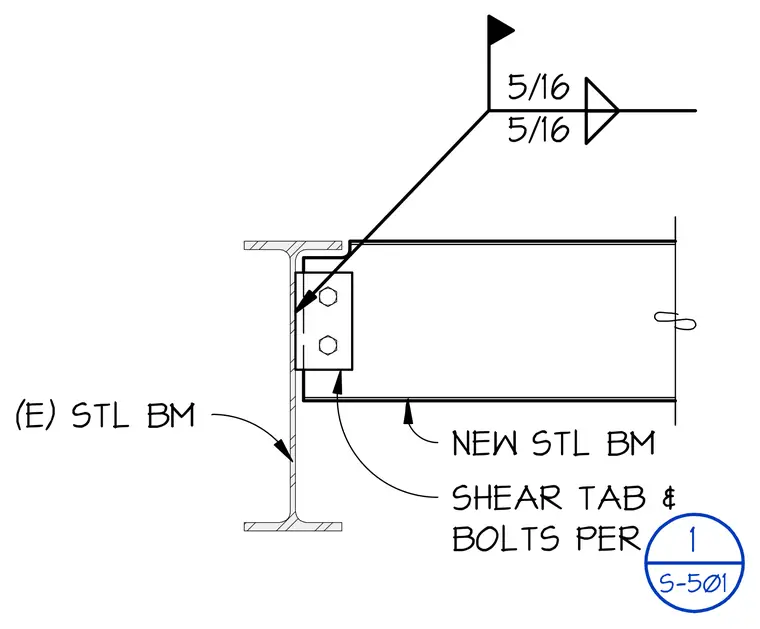

A new steel beam frames into the web of an existing structural steel beam using a bolted single plate shear tab connection. The shear tab is welded to the web of the existing steel beam with five-sixteenths inch fillet welds on both sides. Bolts secure the new beam web to the shear tab.
