A roll-up door weighing a maximum of 2,000 pounds mounts to a precast concrete wall panel supported by manufacturer-provided embedments. The precast panel must resist vertical and horizontal forces from the roll-up door and include a minimum of 6 inches of solid concrete perimeter at the door location.

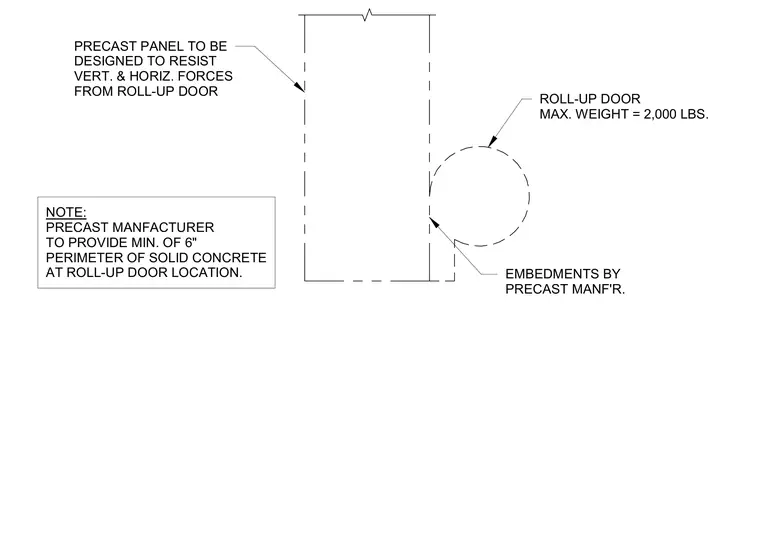

ROLL-UP DOOR MAX. WEIGHT = 2,000 LBS. EMBEDMENTS BY PRECAST MANF'R. PRECAST PANEL TO BE DESIGNED TO RESIST VERT. & HORIZ. FORCES FROM ROLL-UP DOOR NOTE: PRECAST MANFACTURER TO PROVIDE MIN. OF 6" PERIMETER OF SOLID CONCRETE AT ROLL-UP DOOR LOCATION.
