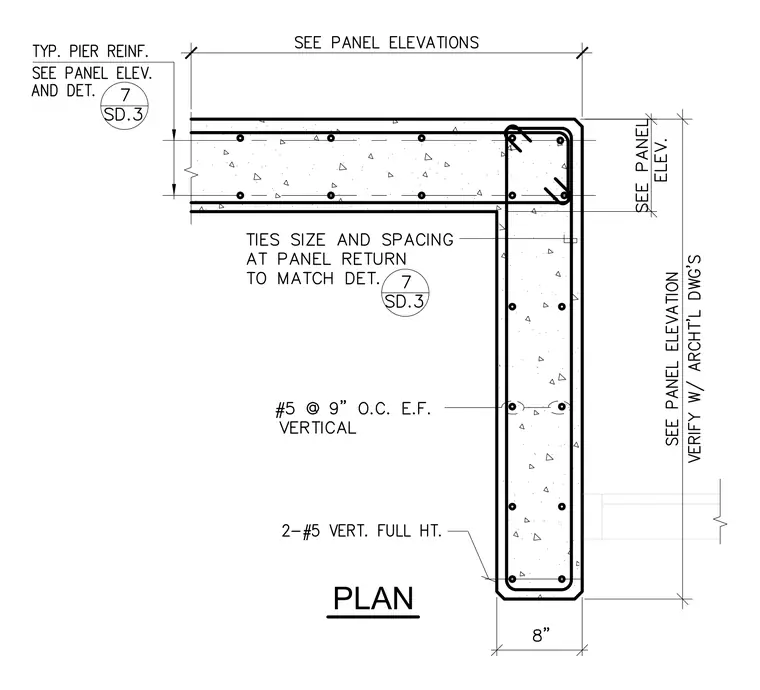

A precast concrete wall corner features number five vertical reinforcing bars at nine inches on center each face, with two additional number five vertical bars running full height at the corner return. Wall thickness is eight inches. Ties at the panel return match detail seven on sheet SD point three, and typical pier reinforcement is governed by panel elevations and details.
