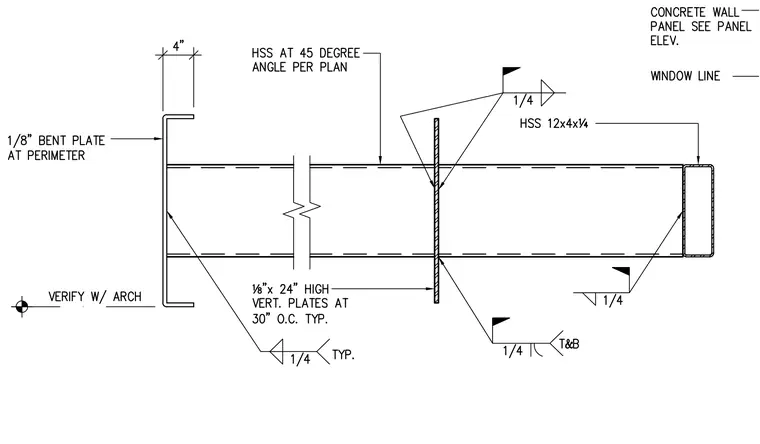

A hollow structural section framing member runs at a forty-five-degree angle per plan, framed against a concrete wall panel and terminating at an HSS 12x4x1/4 member near the window line. One-eighth-inch by twenty-four-inch high vertical plates are spaced at thirty inches on center typically, welded with one-quarter-inch fillets. A one-eighth-inch bent plate forms the four-inch perimeter edge. Field conditions require coordination and verification with the architectural drawings.
